在 VS Code 中可视化数据

SheetJS 是一个用于从电子表格读取和写入数据的 JavaScript 库。

¥SheetJS is a JavaScript library for reading and writing data from spreadsheets.

Visual Studio Code 是一个流行的代码编辑器，支持 JavaScript 扩展，可用于自定义和增强功能。

¥Visual Studio Code is a popular code editor that supports JavaScript extensions for customizing and enhancing functionality.

"完整示例" 使用 VS Code 扩展中的 SheetJS 直接在编辑器中查看 Excel 文件。该扩展程序利用 VS Code 的 "自定义编辑器 API"[^2] 和 "WebView API"[^1] 将电子表格数据显示为 HTML 表格。

¥The "Complete Example" uses SheetJS in a VS Code extension to view Excel files directly within the editor. The extension leverages the VS Code "Custom Editor API"[^2] and "WebView API"[^1] to display spreadsheet data as HTML tables.

"SheetJS 电子表格查看器" 是基于此演示的示例扩展。

¥"SheetJS Spreadsheet Viewer" is a sample extension based on this demo.

源代码可在 SheetJS Git 服务器上使用。欢迎反馈和贡献！

¥The source code is available on the SheetJS Git server. Feedback and contributions are welcome!

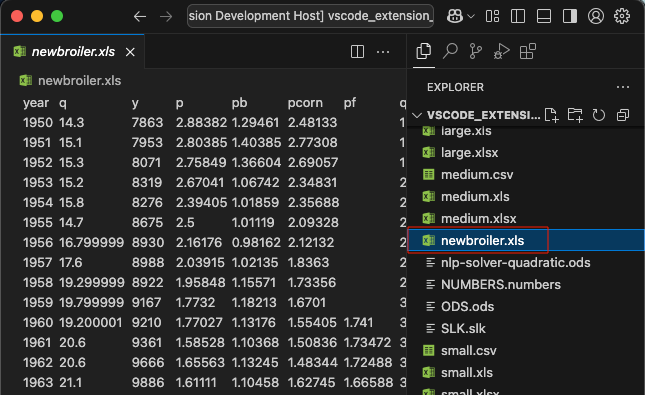

Expected output

测试部署

该演示已在以下部署中得到验证：

¥This demo was verified in the following deployments:

平台	架构	日期
VS Code 1.100.0	`darwin-arm`	2025-05-15	TODO
VSCodium 1.100.0	`darwin-arm`	2025-05-15	TODO
光标	`win11-arm`	2025-05-15	TODO
Windsurf	`win11-arm`	2025-05-15	TODO
无效	`win11-arm`	2025-05-15	TODO

集成详情

¥Integration Details

SheetJS NodeJS 模块可以从扩展中的任何组件或脚本中导入。

¥The SheetJS NodeJS Module can be imported from any component or script in the extension.

该模块必须作为开发依赖安装。如果模块作为常规依赖安装，vsce[^5]（Visual Studio Code 扩展管理器）将无法正确打包或发布你的扩展程序。

¥The module must be installed as a development dependency. If the module is installed as a normal dependency, vsce[^5] (Visual Studio Code Extension Manager) will fail to package or publish your extension correctly.

npm
pnpm
Yarn

npm rm --save xlsx
npm i --save-dev https://cdn.sheetjs.com/xlsx-0.20.3/xlsx-0.20.3.tgz

pnpm rm xlsx
pnpm install -D https://cdn.sheetjs.com/xlsx-0.20.3/xlsx-0.20.3.tgz

yarn remove xlsx
yarn add -D https://cdn.sheetjs.com/xlsx-0.20.3/xlsx-0.20.3.tgz

扩展架构

¥Extension Architecture

VS Code 电子表格查看器扩展包含三个主要组件：

¥The VS Code Spreadsheet viewer extension has three main components:

扩展入口点：使用 VS Code 注册扩展

¥Extension Entry Point: Registers the extension with VS Code
自定义编辑器提供程序：处理 Excel 文件并将其转换为 Web 内容

¥Custom Editor Provider: Handles Excel files and converts them to web content
WebView 内容：将 Excel 数据显示为 HTML 表格

¥WebView Content: Displays Excel data as HTML tables

该扩展程序使用 VS Code 的 Custom Editor API[^2] 注册为 Excel 文件的处理程序。打开文件时，SheetJS 会解析文件并在 WebView 组件中显示数据。

¥The extension uses VS Code's Custom Editor API[^2] to register as a handler for Excel files. When a file is opened, SheetJS parses it and displays the data in a WebView component.

扩展入口点

¥Extension Entry Point

主入口点注册了自定义编辑器提供程序：

¥The main entry point registers the custom editor provider:

src/extension.ts
import * as vscode from 'vscode';
import { ExcelEditorProvider } from './excelEditorProvider';

export function activate(context: vscode.ExtensionContext) {
  // SheetJS Spreadsheet Viewer extension activating...
  const provider = ExcelEditorProvider.register(context);
  context.subscriptions.push(provider);
}
export function deactivate() {}`}

custom editor[^3] 配置为支持特定文件类型，使我们能够完全控制每个文件向用户的呈现方式。此外，custom document[^4] 使我们能够维护并保存每个已打开文件的状态。

¥The custom editor[^3] is configured to support specific file types, giving us complete control over how each file is presented to the user. Additionally, custom document[^4] enables us to maintain and persist the state of each individual file that's opened.

src/excelEditorProvider.ts
import * as vscode from 'vscode';
  import * as XLSX from 'xlsx';
  import { ExcelDocument } from './excelDocument';

  // A simple class to store document state (one per opened file)
  class ExcelDocument implements vscode.CustomDocument {
    constructor(public readonly uri: vscode.Uri) {}
    dispose() {}
  }

  export class ExcelEditorProvider implements vscode.CustomReadonlyEditorProvider<ExcelDocument> {
    // ...
    public static register(context: vscode.ExtensionContext): vscode.Disposable {
    return vscode.window.registerCustomEditorProvider(
        'excelViewer.spreadsheet',
        new ExcelEditorProvider(),
        { webviewOptions: { retainContextWhenHidden: true } } // keep webview state when hidden
      );
    }
    // ...
  }

读取文件

¥Reading Files

该扩展程序使用 VS Code 文件系统 API 读取 Excel 文件，并将数据传递给 SheetJS 进行解析：

¥The extension reads Excel files using the VS Code filesystem API and passes the data to SheetJS for parsing:

src/excelEditorProvider.ts
export class ExcelEditorProvider implements vscode.CustomReadonlyEditorProvider<ExcelDocument> {
    // ...
    private async loadWorkbook(document: ExcelDocument, webviewPanel: vscode.WebviewPanel): Promise<XLSX.WorkBook> {
      const data: Uint8Array = await vscode.workspace.fs.readFile(document.uri);

      const options: XLSX.ParsingOptions = {
        type: 'array',
        cellStyles: true,
        cellDates: true,
      };

      return XLSX.read(new Uint8Array(data), options); // returns a XLSX.WorkBook
    }

    // This is called when the first time an editor for a given resource is opened
    async openCustomDocument(uri: vscode.Uri): Promise<ExcelDocument> {
      return new ExcelDocument(uri);
    }

    // This is called whenever the user opens a new editor
    async resolveCustomEditor(document: ExcelDocument, webviewPanel: vscode.WebviewPanel): Promise<void> {
      const wb: XLSX.WorkBook = await this.loadWorkbook(document, webviewPanel);
      const htmlTable = XLSX.utils.sheet_to_html(wb.Sheets[wb.SheetNames[0]]);
      webviewPanel.webview.html = `<!DOCTYPE html><html><body>${htmlTable}</body></html>`;
    }
  }

使用流程

¥Usage Flow

完整示例

¥Complete Example

创建一个新的 VS Code 扩展

¥Create a new VS Code extension

npx --package yo --package generator-code -- yo code

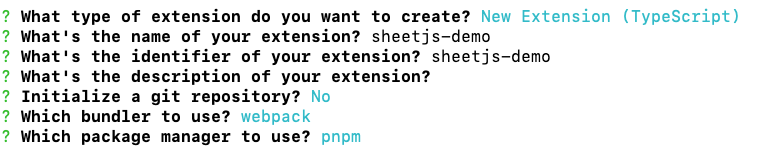

出现提示时，输入以下选项：

¥When prompted, enter the following options:

What type of extension do you want to create?：选择 New Extension (TypeScript) 并按 Enter

¥What type of extension do you want to create?: Select New Extension (TypeScript) and press Enter
What's the name of your extension?：输入 sheetjs-demo 并按 Enter

¥What's the name of your extension?: Type sheetjs-demo and press Enter
What's the identifier of your extension?：按下 Enter

¥What's the identifier of your extension?: Press Enter
What's the description of your extension?：按下 Enter

¥What's the description of your extension?: Press Enter
Initialize a git repository?：输入 n 并按 Enter

¥Initialize a git repository?: Type n and press Enter
Which bundler to use?：选择 webpack 并按 Enter

¥Which bundler to use?: Select webpack and press Enter
Which package manager to use?：选择 pnpm 并按 Enter

¥Which package manager to use?: Select pnpm and press Enter

Expected output

Do you want to open the new folder with Visual Studio Code?：按下 Enter

¥Do you want to open the new folder with Visual Studio Code?: Press Enter

安装依赖并启动开发服务器：

¥Install the dependencies and start the dev server:

cd sheetjs-demo
pnpm install -D https://cdn.sheetjs.com/xlsx-0.20.3/xlsx-0.20.3.tgz
pnpm run watch

将以下代码片段保存到 src/excelEditorProvider.ts：

¥Save the following code snippet to src/excelEditorProvider.ts:

src/excelEditorProvider.ts
import * as vscode from 'vscode';
import * as XLSX from 'xlsx';

class ExcelDocument implements vscode.CustomDocument {
  constructor(public readonly uri: vscode.Uri) { }
  dispose() { }
}

export class ExcelEditorProvider implements vscode.CustomReadonlyEditorProvider<ExcelDocument> {
  public static register(context: vscode.ExtensionContext): vscode.Disposable {
    return vscode.window.registerCustomEditorProvider(
      'excelViewer.spreadsheet',
      new ExcelEditorProvider(),
      { webviewOptions: { retainContextWhenHidden: true } } // keep webview state when hidden
    );
  }

  private async loadWorkbook(document: ExcelDocument, webviewPanel: vscode.WebviewPanel): Promise<XLSX.WorkBook> {
    const data: Uint8Array = await vscode.workspace.fs.readFile(document.uri);

    const options: XLSX.ParsingOptions = {
      type: 'array',
      cellStyles: true,
      cellDates: true,
    };

    return XLSX.read(new Uint8Array(data), options); // returns a XLSX.WorkBook
  }

  // This is called when the first time an editor for a given resource is opened
  async openCustomDocument(uri: vscode.Uri): Promise<ExcelDocument> {
    return new ExcelDocument(uri);
  }

  // This is called whenever the user opens a new editor
  async resolveCustomEditor(document: ExcelDocument, webviewPanel: vscode.WebviewPanel): Promise<void> {
    const wb: XLSX.WorkBook = await this.loadWorkbook(document, webviewPanel);
    const htmlTable = XLSX.utils.sheet_to_html(wb.Sheets[wb.SheetNames[0]]);
    webviewPanel.webview.html = `<!DOCTYPE html><html><body>${htmlTable}</body></html>`;
  }
}

在 src/extension.ts 中注册自定义编辑器提供程序：

¥Register the custom editor provider in src/extension.ts:

src/extension.ts (replace contents)
import * as vscode from 'vscode';
import { ExcelEditorProvider } from './excelEditorProvider';

export function activate(context: vscode.ExtensionContext) {
  // SheetJS Spreadsheet Viewer extension activating...
  const provider = ExcelEditorProvider.register(context);
  context.subscriptions.push(provider);
}
export function deactivate() {}

在 package.json 的 contributes 部分注册自定义编辑器：

¥Register the custom editor in the contributes section of package.json:

package.json (add highlighted lines)
  "main": "./dist/extension.js",
  "contributes": {
    "customEditors": [
      {
        "viewType": "excelViewer.spreadsheet",
        "displayName": "SheetJS Demo",
        "selector": [
          { "filenamePattern": "*.xlsx" },
          { "filenamePattern": "*.xls" }
        ]
      }
    ],
    "commands": [
      {
        "command": "sheetjs-demo.helloWorld",
        "title": "Hello World"
      }
    ]
  },

在编辑器中，打开 src/extension.ts 并按下 F5 或运行命令 Debug：从命令面板 (⇧⌘P) 开始调试。这将在新的扩展开发主机窗口中编译并运行扩展。

¥Inside the editor, open src/extension.ts and press F5 or run the command Debug: Start Debugging from the Command Palette (⇧⌘P). This will compile and run the extension in a new Extension Development Host window.
选择新的 VSCode 窗口并打开 .xlsx 或 .xls 文件。

¥Select the new VSCode Window and open a .xlsx or .xls file.

[^1]: 详细信息请参见 Webview API。

¥See Webview API for more details.

[^2]: 更多详情，请参阅 Custom Editor API 文档。

¥See Custom Editor API documentation for more details.

[^3]: 详细信息请参见 Custom Editor。

¥See Custom Editor for more details.

[^4]: 详细信息请参见 CustomDocument。

¥See CustomDocument for more details.

[^5]: 详细信息请参见 Visual Studio Code Extension Manager。

¥See Visual Studio Code Extension Manager for more details.
